Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: HUAYUAN or custom
  • Model Number: ntag210 nfc inlay
  • Frequency: NFC 13.56mhz
  • Protocol: ISO18092
  • Chip: NTAG210
  • NFC inlay Size: dia13mm
  • Material: Etched antenna+PRT
  • Application: cashless, e-payment, ticket etc
  • Encoding: Available
  • Delivery time: 7-8days
  • moq: 1000pcs
  • sample: free

Packaging & Delivery

Packaging Details Security package of ntag210 nfc inlay : 1000pcs/roll.
Delivery Time Shipped in 12 days after payment

HF passive rfid 13.56mhz ntag210 nfc inlay for gaming





Product Description

NFC inlay with Dia13mm size is the newest and smallest NFC inlay in the current market.  It is a semi-finished product that can be converted into label, tag, badge, etc,



As the RFID applications expand every area, NFC Inlay is a core and cheapest and flexible solution in NFC mass application. With PET substrate, both side of aluminum or copper foil consist of a NFC transponder with etching AL or Cu antenna and golden bump chip by FLIP bonding- it call dry inlay. After coating with adhesive glue and shaping in right size, the inlay call wet NFC Inlay. Sandwich by one side or both sides by paper, a NFC label is finished.



HUAYUAN had spent several year to R&D many different kindly of RFID/NFC inlay for diverse applications, now we had our market cover all of the world.



Small NFC label tag feature:

Material: Paper, PET, etched wet inlay
Antenna Size: Dia13mm
Die-cut diameter label size:
Dia 15mm
Chip: Ntag215
Capacity: 540 byte
Protocal: ISO 18092
Working frequency13.56MHz
Printing: Multi-color printing or customer logo is available
Operating temperature: -20°C- 55°C(Humidity 90%)
Reading: 1 - 2MS
Write endurance :100,000 times
Data retention time: 10 years

Packing:

Single pcs, or in roll

Re writeable multiple times and can be locked when required

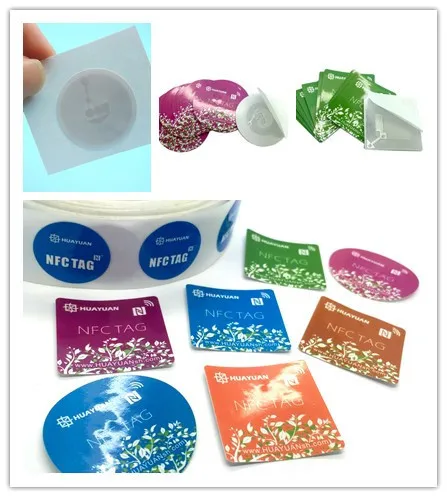

Mini small NFC tag Inlay images:




NFC label images:

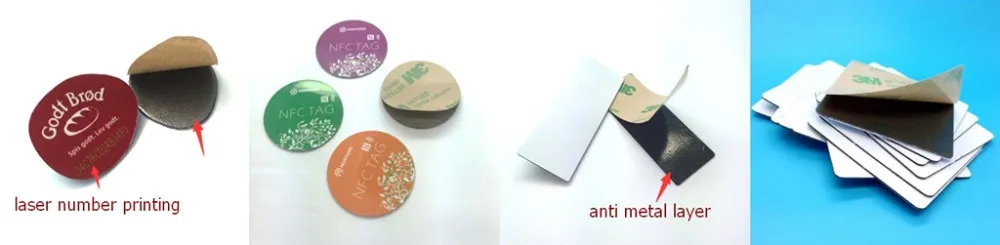

On metal NFC tag:







 NFC chip type for optional:





Chip

Memory
(bytes)

User
Memory
(bytes)

URL characters

Best Use

NTAG203

168

144

132

established all-round NFC chip.
Cost-effective with good memory capacity.

NTAG210

80

48

41

Cheap, general NFC use with short URLs.
Limited availability

NTAG213

180

144

132

Popular, Next generation chip, will eventually replace
NTAG203. Great ScanStrength.

NTAG215

540

504

492

The 'one in the middle'. Good memory but
limited availability compared to the NTAG216.

NTAG216

924

888

854

Large memory and full feature set. Higher price
makes it suitable for Card and larger memory use only.

Topaz 512

512

454

449

Universally compatible chip available in only
a  limited number of products.
Useful for Cards or small data storage.







Packaging & Shipping





Company Information

 History: Start from Jan,1st,1995, with about 20 year experience. Start exporting from 2004, almost 10 years.



HUAYUAN Electronic was at the forefront of RFID fields In 1995, Professional in RFID products for more than twenty years with top quality. We are the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.

RFID Products range from plastic card, Wristband, keyfob to NFC tag and etc with growing of technology and applications in this area.Our success in

Oversea market: First client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 120 countries till now.



FAQ

Q:Are you direct manufacturer?

A: Correctly, We are direct manufacturer and specialized in RFID products with rich experience in this area for twenty years.



Q:Can you make products as custom design?

A: Your design is welcome. You just need to provide your artwork and cutting lines.

Our team:

More than 20 years experience in smart card manufacturing, with honesty, innovation to serve for our customers in all over the world.

WE PROMISE:

  • Satisfied quality
  • Satisfied service
  • Professional technical guide
  • Strict inspection before shipment
  • Advanced production equipment







You are welcome to get in touch with us for details and price.
